JW-01-FR6020V Environmentally Friendly Calcium Carbonate Filled PP Flame Retardant
Main products include: power supply enclosures, adapter housings, junction boxes, outlet covers, coil frames, motor components, terminal covers, appliance bases, fan blades, lighting fixtures, and photovoltaic components
JW-01-FR6020V Environmentally Friendly Calcium Carbonate Filled PP Flame Retardant
（UL94 V-2）
一、 Product Introduction：
1. Excellent flame retardancy. Meets the “self-extinguishing upon removal from flame
standard: V2 (0.8–3.2 mm).
2. Good compatibility with flame retardants. The finished product has a high gloss, no leaching, and no blooming.
3. Excellent mechanical properties. Does not alter the product’s original impact resistance, tensile strength, or flexural strength.
4. Can be filled with 6–25% calcium carbonate.
5. Complies with ROHS and REACH environmental requirements. Suitable for export.
二、Product Quality Specifications
|
Appearance: |

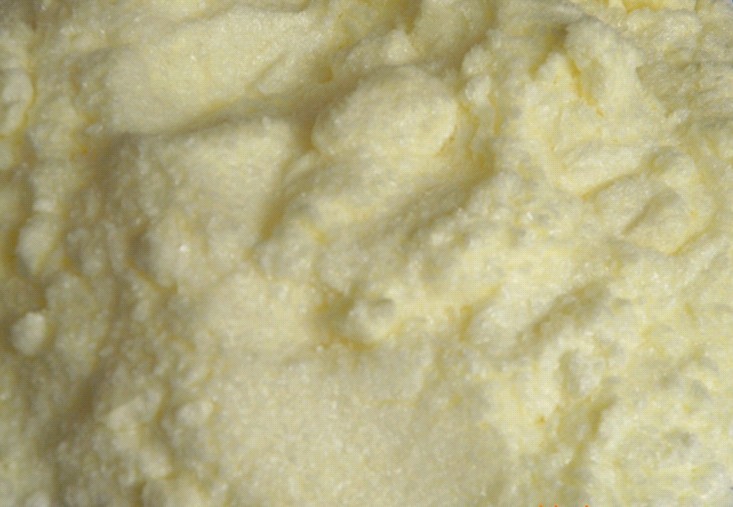

White powder |
|
Bromine content： |
7% |
|
Phosphorus content： |
8% |
|
Loss on drying: |
≦0.5% |
|
Particle size (mesh)： |
>2500 |
|
Density (g/cm³): |
1.3±0.1 |
|
Decomposition temperature： |
275 degrees |
三、 Scope of Application:
European-style electrical outlets, mudguards, ventilation ducts, fans, hollow panels, automotive connectors, PP panels for mining applications, fan heater housings, appliance frames, kettle bases, and frames and lids for washing machines and dishwashers, etc.
Main Applications:
This product is widely used in flame-retardant polypropylene (PP) materials filled with calcium carbonate.
|
Formulation |
1# |
2# |
3# |
|
Homopolymer PP
|
89 |
81.5 |
70 |
|
calcium carbonate
|
8 |
15 |
25 |
|
Flame Retardant JW-01-FR6011
|
3.0 |
3.5 |
5.0 |
|
UL-94(3.2mm) |
V2 |
V2 |
V2 |
Environmental friendliness
|
|
ROHS |
ELV |
EN71-3* |
JW-01-FR6011 |
|
Pb |
<1000ppm |
<1000ppm |
0.7ug |
<0.2ppm |
|
Hg |
<1000ppm |
<1000ppm |
0.5ug |
<0.2ppm |
|
Cd |
<1000ppm |
<100ppm |
0.6ug |
<1ppm |
|
Cr(VI) |
<1000ppm |
<1000ppm |
0.3ug |
<1.5ppm |
|
As |
|
|
0.3ug |
<1ppm |
|
Ba |
|
|
25ug |
<30ppm |
|
Se |
|
|
5ug |
<1ppm |
Hot-wire temperature (IEC 60695-2-13)
|
Test Specifications |
PP + 2% JW-01-FR6011 |
|
GWIT 3.2mm |
775℃ |
|
GWIT 1.6mm |
875℃ |
|
GWIT 0.8mm |
925℃ |
四、 Packaging, Storage, and Transportation：
Inner plastic liner with outer woven bag; net weight 25 kg per bag; handle and store as non-hazardous material; keep dry.
